CT Artifacts Patient-based Artifacts

Summary

This podcast episode explores CT artifacts, focusing on patient-based artifacts. Artifacts are errors in the representation of data that can impact the diagnostic quality of CT images. The episode distinguishes between physics-based, scanner-based, and patient-based artifacts. Examples include motion artifacts from patient movement, streak artifacts from metal implants, and artifacts caused by barium contrast. Solutions such as software corrections, improved scanner technology, and proper patient positioning are discussed as ways to minimize these issues and enhance image quality in clinical diagnostics.

Takeaways

• 🩺 CT artifacts are errors in image perception or representation caused by techniques, modalities, or patient factors.
• 🔬 Physics-based artifacts arise from physical processes involved in CT data acquisition, while patient-based artifacts result from patient movement or metal in the body.
• 🚶‍♂️ Motion artifacts are common and can be minimized by instructing patients to stay still or using rapid scanners with faster gantry rotation.
• 🛠 Metal artifacts, like those from implants, cause streaks due to beam hardening, but software corrections and thicker slices can reduce these artifacts.
• 🧲 Streak artifacts may occur if patients have metal implants or materials like barium in their body during a CT scan.
• 🦴 Photon starvation occurs in thick areas like the shoulders and hips but can be minimized with tube current modulation.
• 📐 Cone beam artifacts, seen with large detector CT scanners, can distort object representation but are correctable with cone beam algorithms.
• ⚙️ Detector calibration issues can lead to ring artifacts; correcting miscalibrated detectors helps eliminate this issue.
• 💻 Multi-dimensional adaptive filtration and metal artifact reduction software can significantly reduce CT artifacts.
• 🚑 Patient positioning, such as raising arms during abdominal scans, and proper pre-screening can prevent or minimize CT artifacts.

Q & A

What are CT artifacts, and why do they occur?

CT artifacts are errors in the perception or representation of information in CT images, introduced by the scanning modality, patient factors, or technical imperfections. They can degrade image quality and, in some cases, mimic clinical conditions.

How can patient movement cause artifacts in CT scans?

Patient movement during the scan can lead to motion artifacts, appearing as blurred or distorted bands on the images. These artifacts occur because the patient’s position changes during data acquisition, leading to inconsistencies in the image.

What advancements in CT technology help reduce motion artifacts?

Modern CT scanners with rapid scanning speeds, such as those with a gantry rotation speed of less than 0.3 seconds, can capture large anatomical areas quickly, freezing patient motion and reducing the likelihood of motion artifacts.

How can metal implants in the body affect CT imaging?

Metal implants can cause streak artifacts due to beam hardening, where the dense metal materials attenuate the x-rays significantly. These streaks distort the image, but can be minimized by using thicker slices or specialized metal artifact reduction techniques.

What causes photon starvation, and how is it addressed in modern CT scanners?

Photon starvation occurs in areas of high attenuation, such as the shoulders and hips, resulting in noisy projections. Modern scanners use tube current modulation to increase radiation dose in thicker areas, reducing photon starvation artifacts.

What are beam hardening artifacts, and how can they be minimized?

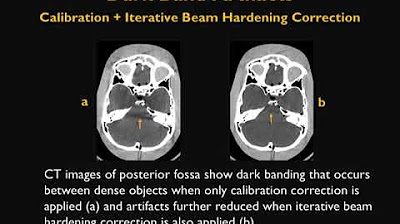

Beam hardening artifacts appear as dark bands on the image, caused by differential x-ray absorption through dense tissues or materials. These artifacts can be minimized by using advanced software corrections and adjusting imaging parameters like slice thickness.

What steps can be taken to reduce artifacts caused by patient positioning?

Proper patient positioning can reduce artifacts, such as having the patient's arms placed above their head during abdominal scans. This prevents arm interference, which can cause streak artifacts due to beam attenuation outside the region of interest.

What are cone beam artifacts, and in which scenarios do they occur?

Cone beam artifacts occur when using wide detectors, like those in multi-slice CT scanners, where the x-ray beam resembles a cone rather than a fan. These artifacts can distort the image, but they can be corrected using cone beam-specific algorithms.

What causes ring artifacts, and how are they corrected?

Ring artifacts are caused by miscalibrated or failing detector elements in the CT scanner, leading to circular distortions in the image. Regular calibration and maintenance of detectors can prevent or correct these artifacts.

What role does software play in correcting CT artifacts?

Modern CT scanners use advanced software algorithms to reduce or eliminate artifacts, such as motion correction software, metal artifact reduction techniques, and adaptive filtration. These technologies enhance image quality and ensure more accurate diagnoses.
