Varignon's Theorem of Moments - Resolution and Composition of Forces - Engineering Mechanics

Summary

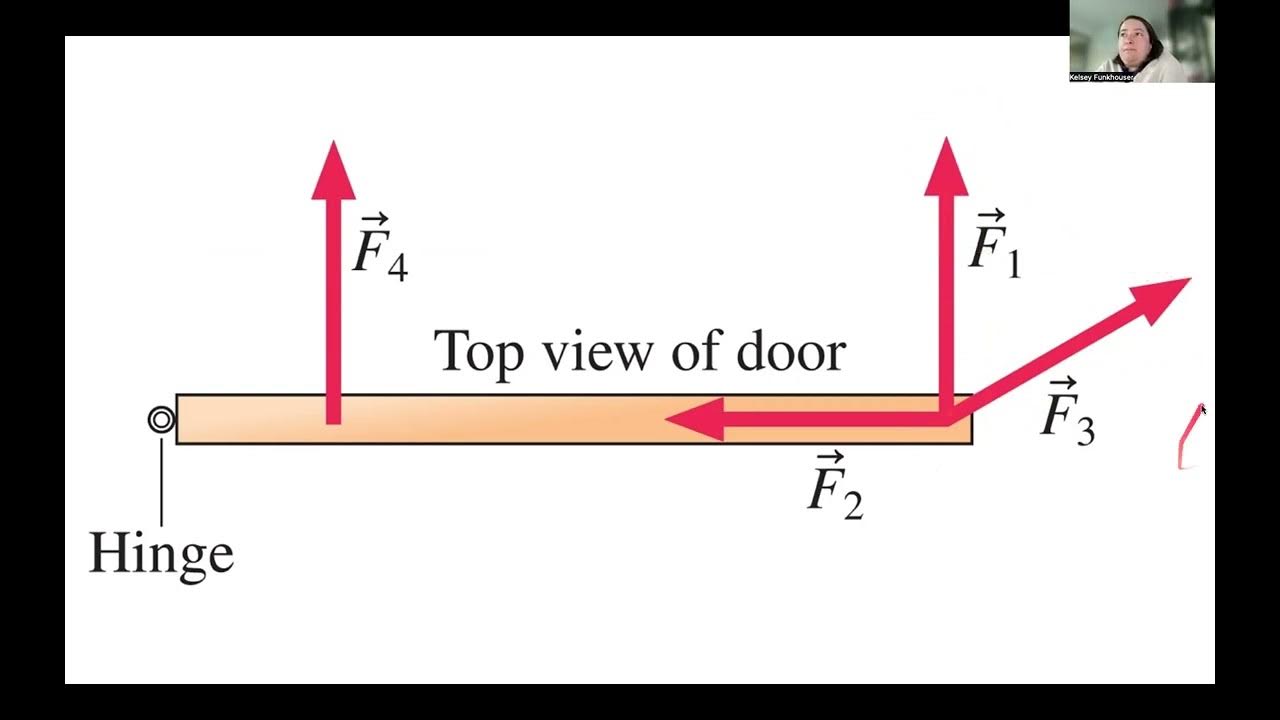

In this lecture on mechanics, the concept of moments is explained as the product of force and perpendicular distance. The moment creates rotation around a fixed point, which can be in the clockwise or anti-clockwise direction. The lecture introduces Varignon's Theorem of Moments, which states that the sum of moments of all forces is equal to the moment produced by the resultant force. The professor illustrates this concept with an example involving vertical forces and demonstrates how to locate the resultant force in a non-concurrent force system. The lecture concludes with an application of Varignon's theorem to solve problems related to moments.

Takeaways

• 😀 Moments are defined as the product of force and perpendicular distance from the point of rotation.
• 😀 The moment can cause clockwise or counterclockwise rotation depending on the direction of the applied force.
• 😀 When calculating moments, the moment is equal to force multiplied by its perpendicular distance from the point of rotation.
• 😀 A fixed point (like point A in the example) causes the object to rotate in a specific direction when a force is applied.
• 😀 The unit of moment is Newton-meter, Newton-centimeter, or Newton-mm, depending on the units used for force and distance.
• 😀 Varignon's theorem states that the sum of moments of all forces equals the moment produced by the resultant force.
• 😀 Varignon's theorem is useful for calculating the location of the resultant force in non-concurrent force systems.
• 😀 In Varignon's theorem, moments are calculated about a single point (like point A), and the sum of these moments equals the moment of the resultant force.
• 😀 When calculating the resultant force, vertical forces are added algebraically, with upward forces considered positive and downward forces negative.
• 😀 The location of the resultant force can be determined by the distance from the reference point (point A), using the sum of moments equation.
• 😀 The example in the script demonstrates how to calculate the location of the resultant using Varignon's theorem, showing a value of 5/3 meters for the location of the resultant.

Q & A

What is the definition of a moment in mechanics?

A moment in mechanics is defined as the product of force and the perpendicular distance from a point of rotation. It is expressed as Moment = Force × Perpendicular Distance.

What is the formula to calculate the moment at point A?

The moment at point A is calculated as the product of the applied force and the perpendicular distance from point A, given as M = F × X.

What is the direction of rotation produced by a clockwise moment?

A clockwise moment produces a rotation in the clockwise direction around the fixed point.

What are the units for a moment?

The units for a moment are Newton-meter (N·m), Newton-centimeter (N·cm), or Newton-millimeter (N·mm), depending on the unit used for distance (meter, centimeter, or millimeter).

What is Varignon’s Theorem of Moments?

Varignon’s Theorem of Moments states that the sum of the moments of all the forces acting on an object is equal to the moment produced by the resultant force. Mathematically, ΣM = R × X, where ΣM is the sum of moments, R is the resultant force, and X is the distance of the resultant force from the point of rotation.

How is the resultant force calculated in a system with multiple vertical forces?

The resultant force is calculated by summing all the vertical forces. Upward forces are considered positive, while downward forces are considered negative. The resultant is the algebraic sum of these forces.

What happens when a force is applied at a point where the distance from the pivot is zero?

When a force is applied at a point where the perpendicular distance from the pivot is zero, the moment produced by that force is zero, as the moment is the product of force and distance.

In the example, how is the location of the resultant force determined?

In the example, the location of the resultant force is determined by applying Varignon’s Theorem of Moments. The sum of moments of all forces about point A is equal to the moment of the resultant force, allowing us to calculate the distance (X) from point A where the resultant acts.

How do clockwise and anti-clockwise moments differ in the calculation?

Clockwise moments are considered positive, while anti-clockwise moments are considered negative. This sign convention helps in determining the net moment acting on the system.

What does the negative value of the resultant force indicate in the example?

The negative value of the resultant force in the example indicates that the resultant force acts downward, as the forces involved are vertical and the negative sign represents a downward direction.
