L'ingénierie brillante à l’origine des pantographes !

Summary

This script delves into the engineering marvel of modern pantographs, showcasing their ability to effortlessly collect energy from overhead lines. It explains how modern pantographs maintain a horizontal head during deployment and folding, using a four-bar linkage mechanism to ensure constant contact with high-voltage lines. The video also explores innovations in pantograph design, such as the use of carbon strips to reduce wear and air resistance, and the introduction of single-arm pantographs to address issues of weight and stability. Additionally, it highlights the importance of horns for smooth transitions between power lines and the placement of pantographs at the rear of trains for reduced aerodynamic drag.

Takeaways

• 🔌 Modern pantographs, shaped like a 'Z', are marvels of engineering, effortlessly deploying and collecting energy from overhead power lines.
• 📐 The head of the collector remains horizontal during the folding and unfolding of the pantograph, which is a crucial feature for understanding modern pantographs' operation.
• 👷‍♂️ Engineers have managed to maintain the horizontal orientation of the collector head without using electronic controllers, through clever mechanical design.
• 🚆 Pantographs are necessary for trains to adapt to varying heights, ensuring sufficient contact force between the current collector and the high-voltage line.
• 🛠 The simplest pantograph consists of a copper conductor with a spring system, but it lacks lateral stability, which is improved by adjusting the spring force and using counterbalancing ropes.
• 🛤️ The 'trolley pole' collector design, invented by Frank J. Sprague, inevitably experiences wear due to continuous train movement and friction.
• 🔄 The innovative zigzag pattern of catenary wires helps reduce wear on the collector head by continuously changing the contact surface.
• 📈 To manage wear, a carbon strip can be introduced in the design, allowing for operation at increased speeds from 35 to 100 kilometers per hour.
• 🌬 John Tube Brown patented a current collector called the pantograph in 1903, which uses springs and pneumatic pistons to adjust the height and maintain contact with the high-voltage line.
• 💨 The symmetrical 'teardrop' shape of the pantograph reduces air resistance and vibrations, ensuring the collector head remains horizontal.

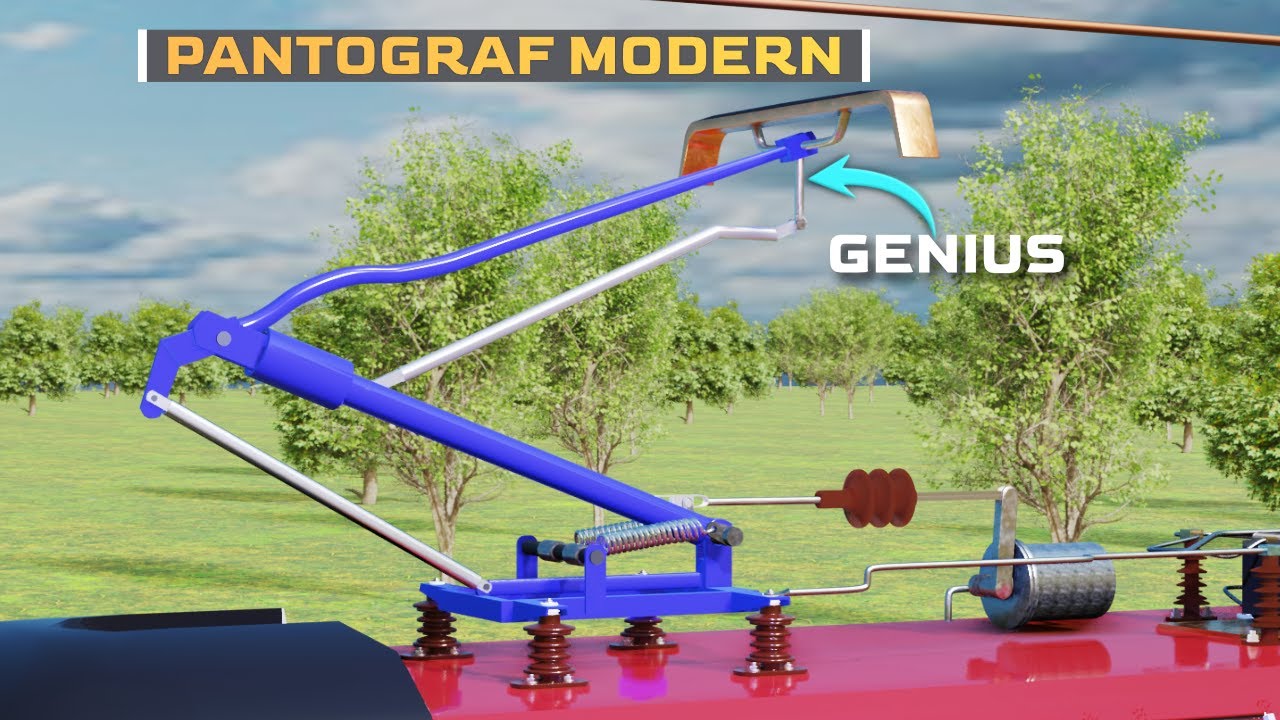

• 🔄 The single-arm pantograph, introduced by Monsieur Louis Faiveley, uses a four-bar linkage mechanism to maintain the horizontal position of the collector head during operation.

Q & A

What are modern pantographs and why are they considered engineering marvels?

Modern pantographs are devices used on trains to collect energy from overhead power lines. They are considered engineering marvels due to their ability to deploy and retract with ease, maintaining a consistent contact force with the power lines even when facing changes in height or speed.

How does the head of the collector in a modern pantograph remain horizontal during folding and unfolding?

The head of the collector remains horizontal due to the design of the pantograph's arm mechanism. As the pantograph is pushed upwards, the angle of the upper arm changes, but the head of the collector maintains its horizontal position, similar to how a cardan joint operates.

Why do trains need a pantograph?

Trains need a pantograph to adapt to varying heights and maintain a consistent distance from the high-voltage power lines, especially when passing under bridges or through areas with uneven terrain. Pantographs ensure sufficient contact force between the current collector and the power lines.

What is the basic design of the simplest pantograph?

The simplest pantograph consists of a copper conductor with a spring system. When it is raised, it begins to collect current, which is then supplied to the engine. However, this simple design lacks lateral stability.

How do engineers improve the stability of a simple pantograph?

To improve stability, engineers tilt the rod in a certain direction and rearrange the spring system, allowing the collector to maintain contact with the power line. They also use a counterbalancing force, such as a rope attached in the opposite direction, to ensure precise alignment.

Who invented the trolley pole concept, and what is its purpose?

The trolley pole concept was invented by Frank J. Sprague. It is designed to address the wear and tear on the collector head due to continuous train movement and friction, which can break the head within two to three weeks.

How do pantographs reduce wear on the collector head?

Pantographs reduce wear by increasing the length of the collector head and keeping it perpendicular. The zigzag pattern of the overhead lines and the arrangement of the cables allow the collector head to slide along its length, continuously changing the contact surface and slowing down wear.

What is a carbon strip used for in pantographs, and at what speeds can it be used?

A carbon strip is introduced in pantographs to manage wear, allowing the device to operate at increased speeds, ranging from 35 to 100 kilometers per hour.

What is a pantograph with lateral horns called, and what is its purpose?

A pantograph with lateral horns is called an 'arcuate collector.' It is designed to assist in the smooth transition between different power lines during the commutation of phases, preventing the line from getting stuck under the collector head.

Who patented the current collector known as the pantograph, and what was its purpose?

John W. Tube Brown patented the current collector known as the pantograph in 1903. It was designed to address issues with air resistance and vibrations at high speeds, ensuring a tight contact with the high-voltage line.

What is the significance of placing the pantograph at the rear of the locomotive?

Placing the pantograph at the rear of the locomotive significantly reduces aerodynamic drag due to the boundary layer effect. The rear-facing pantograph experiences lower airspeed, as it is within the boundary layer, thus reducing drag.

Why are two pantographs installed on top of a locomotive?

Two pantographs are installed to handle the aerodynamic challenges at high speeds, especially when the train is moving in the opposite direction. The second pantograph, oriented in the opposite direction, helps to counteract the increased drag caused by air turbulence.
